Paint Shop
ALPHABITE Paint Shop Applications
As high-quality sealants for automotive painting processes, ALPHABITE plays an important role in protecting the appearance of
vehicles and enhancing their aesthetics. With its remarkable adhesion properties, ALPHABITE offers the optimal solution for core
areas of the vehicle that requires waterproofing, anti-vibration, and anti-corrosion, while maintaining reliable performance under
challenging environmental conditions.

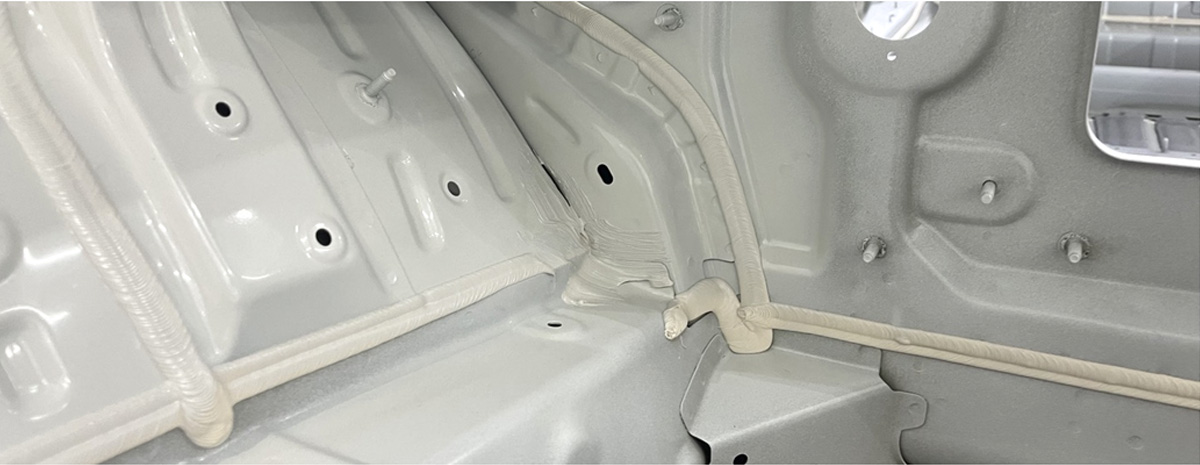

Seam Sealer
ALPHABITE provides rustproof, anti-vibration, and waterproof features that contribute weight reduction for automobiles with a wide range of specific gravities.
It offers exceptional paint adhesion to satisfy the vehicle's long-term durability and aesthetic completion.
Applications
- Body inner/outer panel floor
- Wheel house
- Engine room
- Trunk room
- Roof
- Moving part
- Various panel connection parts
Features &
Benefits
- White in color and paste-like, facilitating subsequent paint processes and easy to work with
- Smooth application with no nozzle clogging or uneven discharging
- Excellent painting workability
- No flow or displacement after curing
- Excellent paintability on the sealer, free from contamination, discoloration, or blooming
- Exceptional durability against climate changes and vibrations from the chassis
Technical
Specifications
| Product | Type | Viscosity [CPS] |
Specific Gravity |
Solid Content [%] |
Shear Strength [kg/cm2] |
|---|---|---|---|---|---|
| ALPHABITE B 1100 B | Body | 80,000 ~ 180,000 | ≤ 1.7 | ≥ 97 | ≥ 7 |
| ALPHABITE B 1200 A | Under Body | ||||
| ALPHABITE B 1300 BD | Low Specific Gravity | ≤ 1.2 | |||
| ALPHABITE B 1400 BUD | Ultra Low Specific Gravity | ≤ 1.0 | |||
| ALPHABITE B 1500 AUD | Economic Ultra Low Specific Gravity | ||||
| ALPHABITE B 1700 BL | Oiler | To be decided by the parties involved |
≤ 1.7 | ≥ 95 | ≥ 7 |
| ALPHABITE B 1800 E | Roof Ditch | 40,000 ~ 120,000 | ≤ 1.7 | ≥ 97 | ≥15 |

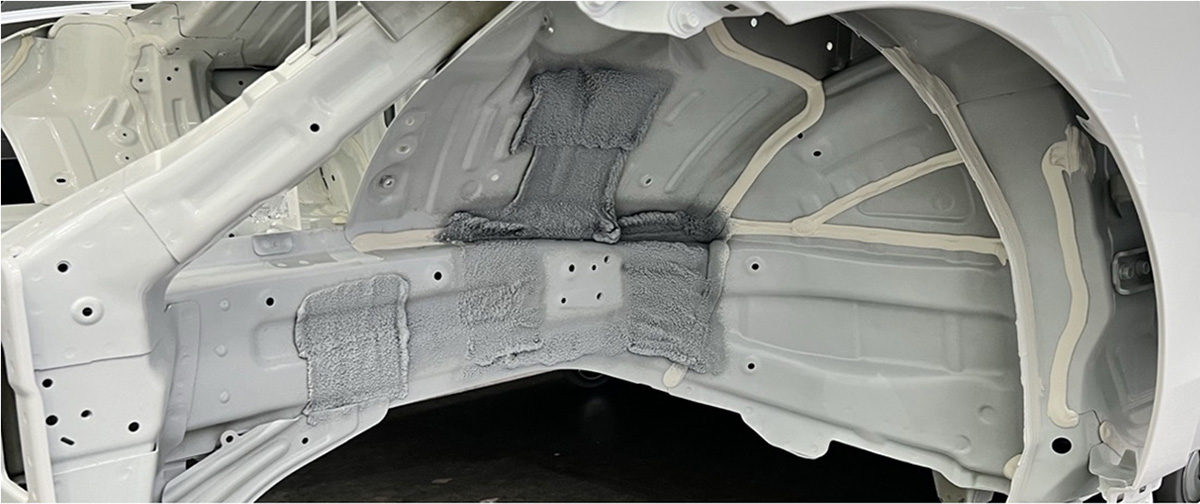

Underbody Coating
ALPHABITE is a one-component, PVC-based paste product that undergoes a thermosetting process. It is widely used for noise reduction, waterproofing, anti-vibration, and anti-corrosion of various parts such as underfloor and wheelhouse in automobiles.
Applications
- Wheel house
- Under floor
- Fuel tank
- Side sill
Features &
Benefits
- Easy to use as 1K adhesive with excellent appearance
- No discoloration after curing
- Outstanding flexibility, chipping and abrasion resistance
- Trustworthy resistance against chemicals and cold
- Excellent sound deadening performance
Technical
Specifications
| Product | Type | Viscosity [CPS] |
Specific Gravity | Solid Content [%] |
Shear Strength [kg/cm2] |
Hardness |
|---|---|---|---|---|---|---|
| ALPHABITE D 4100 F | Foam | To be decided by the parties involved |
≤ 1.5 | ≥ 95 | ≥ 7 | ≥ 70 |
| ALPHABITE D 4200 F | High-Foam | ≥ 67 |
