Body Shop
ALPHABITE Body Shop Applications
ALPHABITE provides superior performance and remarkable durability, contributing to the structural integrity of vehicles and ensuring their safety and dependability. The product effectively optimizes the welding process while preserving robust adhesive strength across various environments, adhering to the industry's stringent standards.
Our commitment to ongoing research and development drives our innovation and growth in alignment with advancements in automotive technology.
Structural
Adhesives
ALPHABITE structural adhesives, which are epoxy-based, significantly increase the rigidity of vehicle bodies while facilitating weight reduction by serving as an alternative to welding.
Their exceptional adhesive strength guarantees robust bonding of components, which reduces body distortion and the risk of breakage during collisions, ultimately enhancing driving stability.

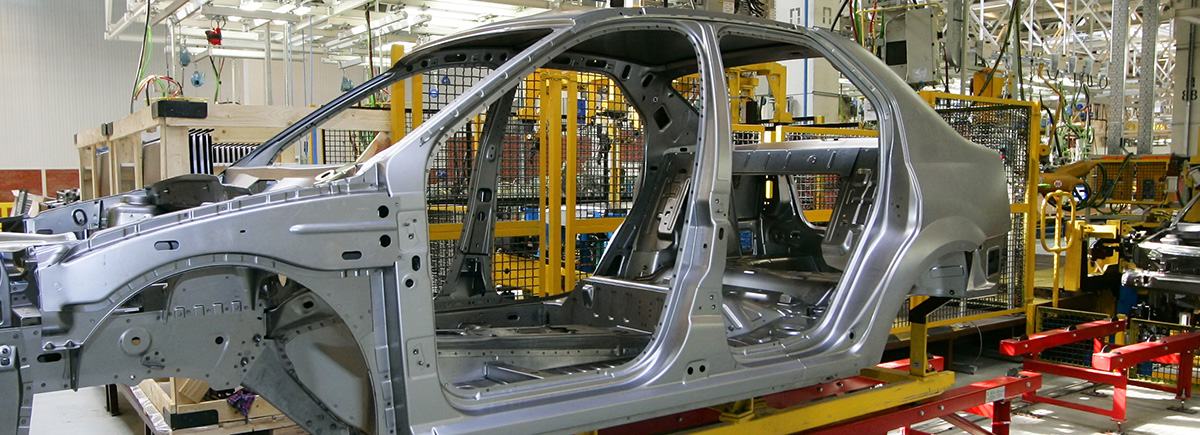

Applications
- Roof
- Side
- Dash
- Engine room
- Various connection parts of steel plates
Features &
Benefits
- Easy to use as one-component adhesive
- Excellent adhesive performance between outer and inner steel panels
- Replacement/reduction of spot welding parts
- Superior anti-corrosion performance (No welding required)
- Resilient, showing no signs of cracking or peeling upon impact
- Free from harmful substances in the formulation
Technical
Specifications
| Product | Type | Color | Viscosity [CPS] |
Specific Gravity | Solid Content [%] |
Shear Strength [kg/cm2] |
Impact Peel |
|---|---|---|---|---|---|---|---|
| ALPHABITE ST A1100 | A | Black | 1,100,000 - 3,000,000 |
1.5±0.1 | ≥ 98 | 250 | - |
| ALPHABITE ST C1200 | C | Black | 1,500,000 ±150,000 |
≤ 1.2 | 22 | ||
| ALPHABITE ST D1300 | D | Purple | 35 | ||||
| ALPHABITE ST E1400 | E | Orange | 300 | 45 | |||
| ALPHABITE ST DHV1500 | D-HV | Orange | 9,000,000 ±3,000,000 @ 23℃ 2,000,000 ±2,000,000 @ 40℃ |
≤ 1.3 | 250 | 35 |
Hemming
Adhesives
ALPHABITE hemming adhesives, applied to the hemming section of a car's moving parts, provide robust adhesion due
to the inclusion of glass beads. They ensure strong bonding between the inner and outer panels in a liquid state and
protect joints from damage during collisions.
This solution effectively enhances the reliability of moving parts, providing a safe and sturdy connection.

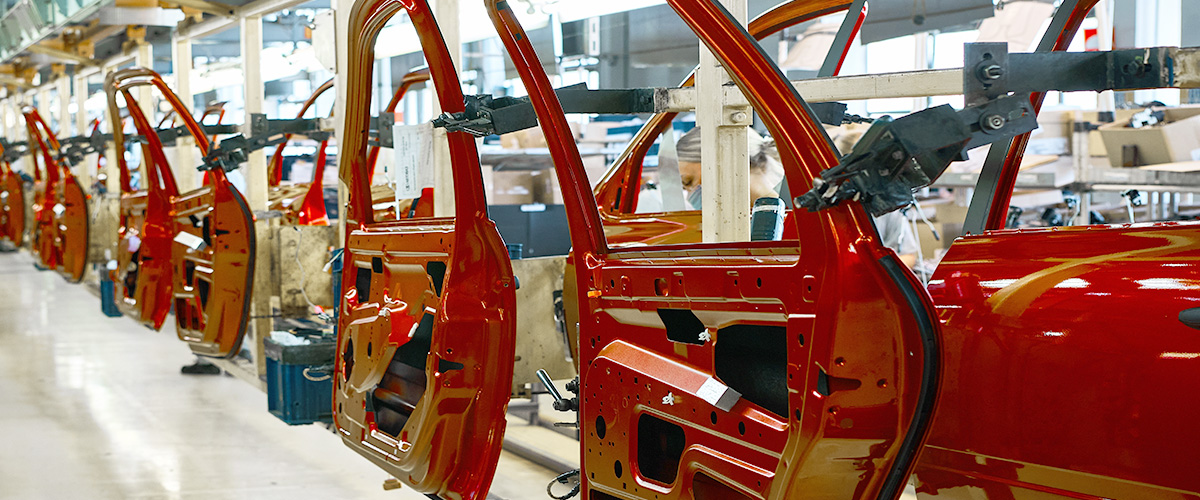

Applications
- Door
- Hood
- Trunk lid
- Tailgate
Features &
Benefits
- No spot welding required – glass beads enable secure panel fixation after hemming
- Outstanding adhesive performance on oiled steel panels
- Strong adhesion with no bending as there is no shrinking
- Superior anti-corrosion performance (No welding required)
- Free from harmful substances in the formulation
Technical
Specifications
| Model | Type | Color | Viscosity [CPS] |
Specific Gravity | Solid Content [%] |
Shear Strength [kg/cm2] |
Impact Peel |
|---|---|---|---|---|---|---|---|
| ALPHABITE H C2100 | C | Black | 400,000 ~ 900,000 |
1.5 ± 0.1 | ≥ 98 | ≥ 200 | - |
| ALPHABITE H D2200 | D | Black | 1.2 ± 0.1 | ≥ 350 | ≥ 35 |
2K
Adhesives
ALPHABITE 2K adhesives come in two-component type, offering strong adhesion performance across various steel
grades. They are primarily used for electric vehicle components and body parts, curing at room temperature for an
eco-friendly and efficient solution. Made from high-quality materials, they provide stable adhesion in vehicle interiors
and exteriors, enhancing durability and reliability.
Applications
- Door
- Hood
- Trunk lid
- Tailgate
- Other necessary parts of the vehicle body
Features &
Benefits
- Cures at room temperature
- Excellent adhesive performance on various types of steel panels
- No crack and peel by impact
- Low-odor compared to regular acrylic adhesives
- Additional heat curing allowed after room temperature curing
Technical
Specifications
| Product | Type | Color | Viscosity [PS] |
Specific Gravity | Solid Content [%] | Shear Strength [Mpa] at Room Temp. | Mix Ratio (Resin : Hardener) |
|---|---|---|---|---|---|---|---|
| ALPHABITE 2K E3100 | Epoxy (E) (100) |
Black (mixed) |
200,000 ±100,000 |
≤ 1.2 (mixed) | ≥ 98 (mixed) | 6h: ≥ 0.7 7d: ≥ 17 |
2 : 1 |
| ALPHABITE 2K EH3200 | Epoxy (EH) (200) |
Black (mixed) |
50,000 - 300,000 |
≥ 99 (mixed) | 4h: ≥ 0.7 7d: ≥ 10 |
2 : 1 | |
| ALPHABITE 2K AH3300 | Acryl (AH) (300) |
Gray (mixed) |
≥ 88 (mixed) | 1h: ≥ 0.6 7d: ≥ 9 |
4 : 1 |
