ALPHABITE EV Solutions
ALPHABITE dissipates the heat generated by electric vehicle batteries, followed by increase in durability. Stable battery performance provides economic and environmental benefits of electric vehicles that ultimately supports the sustainable mobility development.
TIM
(Thermal Interface Material)

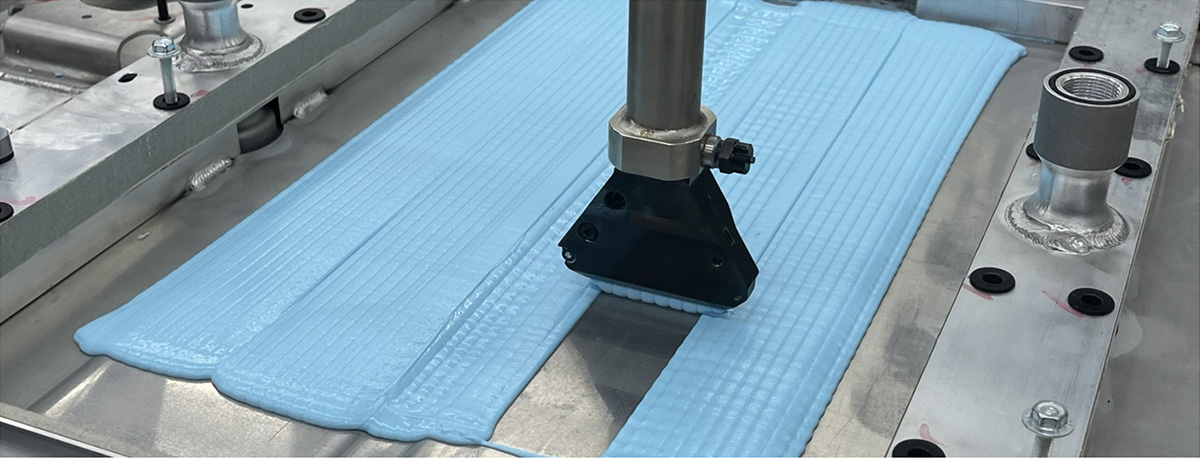

The thermally conductive two-component liquid gap filler is used in frame-structured batteries to enhance heat
dissipation and voltage resistance. Its liquid phase application allows for easy heat dissipation and adjustable thickness even in complex structures, and it can also be used on brittle materials.
Applications
- Automotive batteries
- Display
- LED application
- Semiconductors
- Electronic devices
Features &
Benefits
- Cures at room temperature and with heat
- Outstanding thermal conductivity and voltage resistance
- Excellent heat resistance, ensuring no degradation of physical properties from battery heat dissipation
- Custom production easily accommodated based on customer requirements
- Easy to remove after curing, simplifying part replacement
Technical
Specifications
| Product | Thermal Conductivity [W/m-K] | Specific Gravity | Viscosity [CPS] | Solid Content [%] | Hardness [Shore 00] | Voltage Resistance (≤ AC - 0.12) | Curing Time | Flame Rating (Vertical Burning Test) |
|---|---|---|---|---|---|---|---|---|
| ALPHABITE GF 1218 | 2 | ≤ 1.8 | 80,000 ~ 250,000 |
≥ 99 | 30 ~ 60 | No dielectric breakdown |
Working time → @ 25℃: 2hr Cure time → @ 25℃: 24hr |
V-0 |
| ALPHABITE GF 1220 | ≤ 2.0 | |||||||
| ALPHABITE GF 1317 | 3 | ≤ 1.7 | ||||||
| ALPHABITE GF 1319 | ≤ 1.9 | |||||||
| ALPHABITE GF 1321 | ≤ 2.1 | |||||||
| ALPHABITE GF 1420 | 4 | ≤ 2.0 | ||||||
| ALPHABITE GF 1520 | 5 | ≤ 2.0 |
