ALPHABITE Interior Applications
Automotive interior design is just as important as the exterior, playing a key role in driver comfort and satisfaction.
The latest trends go beyond looks, integrating smart technologies and eco-friendly materials, with a growing focus on maximizing interior space.
ALPHABITE offers a reliable solution for automotive interior production, meeting industry and quality standards, as well as OEM VOC requirements. It delivers exceptional adhesion performance while fulfilling both technical and environmental standards, making it an advanced choice for modern automotive interior design.
Water-
based
ALPHABITE's bonding technology enables manufacturers to create visually appealing, soft-touch surfaces for parts lamination. Our water-based 2K solutions provide durability and adhesive stability across various environments.
Designed to enhance sensory quality while meeting OEM requirements, ALPHABITE interior adhesives ensure consistent quality and reliable performance, supporting a comfortable driving experience.
Applications
- Crash pads
- Door panels
- Headliners
- Sun visors and pillars
Features &
Benefits
- Reliable adhesion performance with various materials (PC/ABS, ABS, PU, PES, pre-treated PP)
- Low energy consumption process due to low processing temperature
- Customizable for a wide range of applications, including leather wrapping, IMG, and flocking
- Solvent-free – complies with OEM standards, VOC, FOG
- Excellent adhesion, heat resistance, durability, and weather resistance that meet OEM engineering standards
- Very high resistance to plasticizers and hydrolysis
Technical
Specifications
| Product | Type | Color | Viscosity [mPa·s] (20°C / Brookfield RVT) |
Density [kg/L] |
Solid Content [%] |
Pot Life (20°C) |
Mix Ratio [Resin: Hardener] |
Final Bond Strength 23°C (73°F) / 50% r.h. |
|---|---|---|---|---|---|---|---|---|
| ALPHABITE W 6100 L | PUD 2K | Resin: White, Hardener: Blue |
18,000 (4/5 Rpm) approx. |
1.0 approx. | 42 – 48 approx. |
8 hr | 100 : 5 or 100 : 6 |
72 hr |
| ALPHABITE W 6200 I |
Flocking
ALPHABITE flocking adhesives are water-based 1K products that offer excellent sprayability along with high water and abrasion resistance. We provide an ideal solution for elevating your vehicle’s interior with a soft-touch, non-reflective finish on interior components like glove boxes and center consoles.
Applications
- Glove boxes, center consoles
Features &
Benefits
- Reliable adhesion performance with various materials (PC/ABS, ABS, PU, PES, pre-treated PP)
- Outstanding spray workability and leveling behavior
- Very good resistance to abrasion (dry and wet)
- Very high resistance to hydrolysis
- Adhesion, heat resistance, durability, and weather resistance that meet OEM engineering standards
- Superior adhesion to fine flocking fibers
Technical
Specifications
| Product | Type | Color | Viscosity [mPa·s] (20°C /Brookfield RVT) |
Density [kg/L] |
Solid Content [%] |
Pot Life (20°C) |
Baking Condition (in drying oven, 70℃) |
Shelf Life |
|---|---|---|---|---|---|---|---|---|
| ALPHABITE W 6300 F | Synthetic resin 1K | White | 4,000 (4/20 rpm) approx. |
1.0 approx. | 35 approx. | 8 hr | 40 min. approx. |
6 months |
1K Solvent-
based

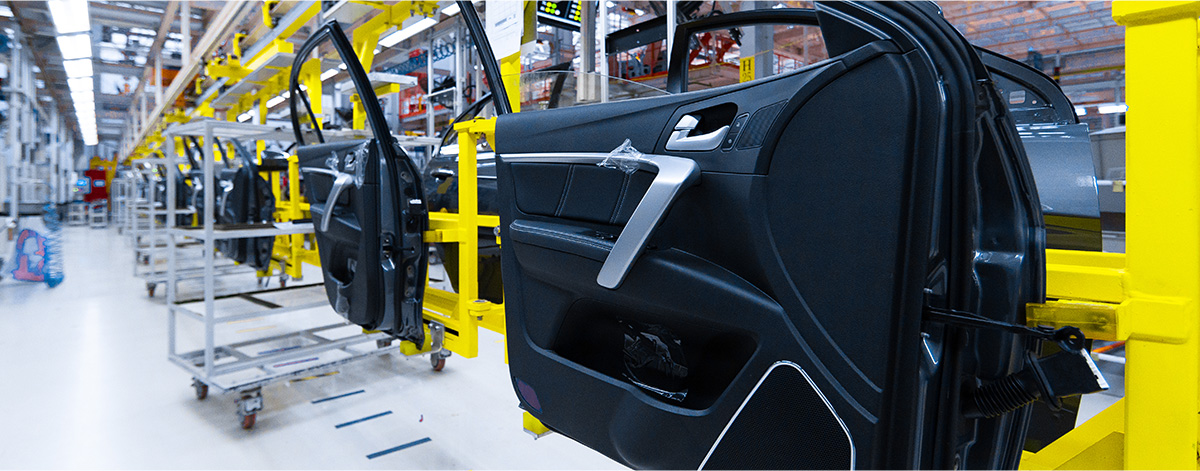

ALPHABITE 1K solvent-based interior adhesives can be used for door trim applications, providing strong adhesion to a variety of materials commonly used in automotive interiors, including plastics, leather, fabric, and composites.
With good resistance to weathering, humidity, and mechanical stress, ALPHABITE offers long-lasting performance and reliability.
We provide customized solutions to meet a wide range of lamination needs, including:
Vacuum Covering Lamination – various skins, foams, fibers, composite materials
Press Lamination – foam-backed textiles and artificial leather
Applications
- Door panels
Features &
Benefits
- Excellent adhesion to non-polar materials (PP, PE) without pre-treatment
- BTX-free – complies with OEM standards, VOC, FOG
- High productivity due to low processing temperature
- Very good initial adhesion
- Adhesion, heat resistance, durability, and weather resistance that meet OEM engineering standards
Technical
Specifications
| Product | Type | Color | Viscosity [mPa·s] (20°C / Brookfield RVT, Sp. 2/50 Rpm) |
Density [kg/L] |
Solid Content [%] |
Shelf Life |
|---|---|---|---|---|---|---|
| ALPHABITE S 6400 DR | Synthetic rubber 1K | Red | 70 -120 approx. | 0.8 approx. | 20 approx. | 9 months |
| ALPHABITE S 6500 DRL |
2K Solvent-
based
ALPHABITE offers 2K solvent-based systems with outstanding resistance against heat and hydrolysis. With strong adhesion to a wide range of substrates and processes, it ensures consistent and reliable performance in applications.
We provide customized solutions to meet a wide range of lamination needs, including:
Vacuum Covering Lamination – various skins, foams, fibers, composite materials
Press Lamination – foam-backed textiles and artificial leather
Applications
- Door panels
- Crash pads
Features &
Benefits
- Excellent adhesion performance with various materials (PC/ABS, ABS, PU, PES, pre-treated PP)
- Low energy consumption process due to low processing temperature
- BTX-free solvent-based formulation – complies with OEM standards, VOC, FOG
- Adhesion, heat resistance, durability, and weather resistance that meet OEM engineering standards
- Very high resistance to plasticizers and hydrolysis
Technical
Specifications
| Product | Type | Color | Viscosity [mPa·s] (20°C / Brookfield RVT, Sp. 2/50 Rpm) |
Density [kg/L] |
Solid Content [%] |
Pot Life (20°C) |
Mix Ratio [Resin: Hardener] |
Final Bond Strength 23°C (73°F) / 50% r.h. |
|---|---|---|---|---|---|---|---|---|
| ALPHABITE S 6600 PU |
PU 2K | Resin: White, Hardener: Blue |
1,000 approx. | 0.9 approx. |
20 approx. | 8 hr | 100 : 7-10 | 72 hr |
